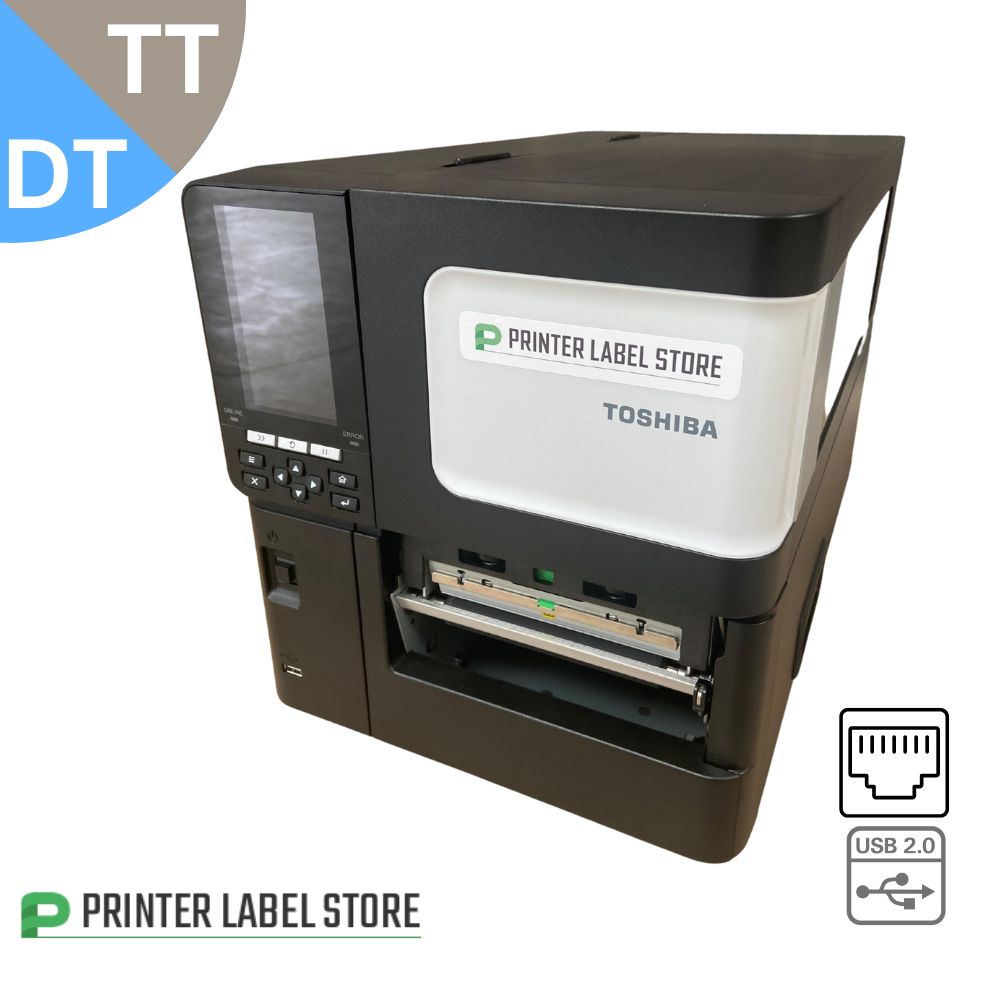

Toshiba TEC BX430T Thermal Transfer & Direct Thermal Label Printer - 600 dpi

Toshiba BX430T label printer, thermal transfer & direct thermal printing, 600 dpi resolution, Colour LCD display, USB 2.0, USB Host, LAN

The Toshiba BX430T 4-inch label printer offers both thermal transfer and direct thermal printing. An intuitive colour LCD screen enhances ease of use.  As standard, the BX features  USB and LAN interfaces, as well as options for Bluetooth, WLAN, RS-232, and external I/O connections.

Toshiba’s A-BRID OS provides cloud connectivity with effortless integration, ideal for businesses that demand flexibility and tailored solutions. Engineered for modern efficiency, this printer is designed to meet the evolving needs of professional label printing, making it a dependable choice for organisations that prioritise productivity and quality.

Built for performance, designed for efficiency

The Toshiba TEC BX series builds upon the robustness of its predecessor and introduces innovations that make industrial labelling more innovative and efficient than ever before. Reliability is key, and that’s why these printers are designed to handle high-volume, continuous operations with minimal downtime or operator interventions. Designed for long-term use with reduced maintenance requirements, along with cloud connectivity for remote device management, the Toshiba BX range stays ahead with unmatched productivity without compromising on quality.

Seamless integration & effortless operation

Toshiba understands that businesses require labelling solutions that integrate easily with existing infrastructure. The Toshiba BX series offers multiple connectivity options, including USB, LAN and optional Wi-Fi, along with native PDF printing and auto-emulation to support different printer languages.

Key highlights

• Smart cloud connectivity: The new A-BRID platform enables cloud-based device management, allowing businesses to monitor and control the entire printer fleet
  from anywhere
• Unmatched durability & cost control: Equipped with long-life print heads and optional enhanced ribbon-saving technology, ensuring a low total cost of ownership (TCO).
• Superior user experience: New features like the integrated label near-end detection, the QR code-based help function and a full colour display simplify daily
  operation.
• Upgrade to RFID printing: Easily transform the BX410T to print and encode RFID tags and labels.
• Versatile application range:  Perfect for electronic component and PCB labelling,
  with a label pitch as small as 3 mm.


Toshiba BX430T - Label Printer Specification

Technology: Direct thermal / Thermal Transfer
Print Head: Flat head
Print Width:  13 to 107mm
Print Length: Batch 3 to 1,498 mm, Cut 3 to 497mm, Peel off 13 to 496mm
Backing paper width:   25mm to 110mm
Print Resolution: 600 dpi (23.6 dots/mm)
Print Speed: up to  152 mm/second (6 ips)
Memory capacity: 1 GB RAM, 8 GB ROM
Barcodes: EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW7, CODE 39, Code 93, ITF, MSI, Code 128, EAN 128,  Industrial 2 of 5, POSTNET, RM4SCC, KIX-code, GS1 DataBar, USPS  Intelligent mail, Customer Barcode
2D Codes: Data Matrix, PDF417, MaxiCode, QR Code, Micro QR Code, Micro PDF417,
CP Code, AZTEC Code, GS1 QR Code, GS1 Data Matrix
Fonts: Bitmap font, Outline font, Price font, Optional TTF, OTF, Writable characters
Interface: USB 2.0 HS (USB host/HID support), LAN 10/100/1000 BaseT
Options: Disc cutter, Peel-off module, External media guide, RS232, Wireless LAN, EX I/O, Real time clock, Cover damper
Emulation: Auto-detection of TPCL, ZPL II, DPL, SBPL, IPL(2), PDF
Language Support:  TPCL

Thermal Transfer Ribbon

Ribbon width:  max. 115 mm
Ribbon core size:  25.7 mm (±0.2 mm)
Maximum ribbon length: 300m
Maximum ribbon diameter: 70mm
Near-end detection: 30m or 70m selectable

Media  Direct Thermal / Thermal Transfer

Alignment: Centred
Backing paper width:  25mm to 110mm
Label thickness: 0.13–0.17mm
Inner core diameter: 76.2mm (3")
Outer roll diameter: max. 200mm
Media types: Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polymide
Media formats: Roll, fanfold
Near-end detection: Adjustable, e.g. 10% remaining
