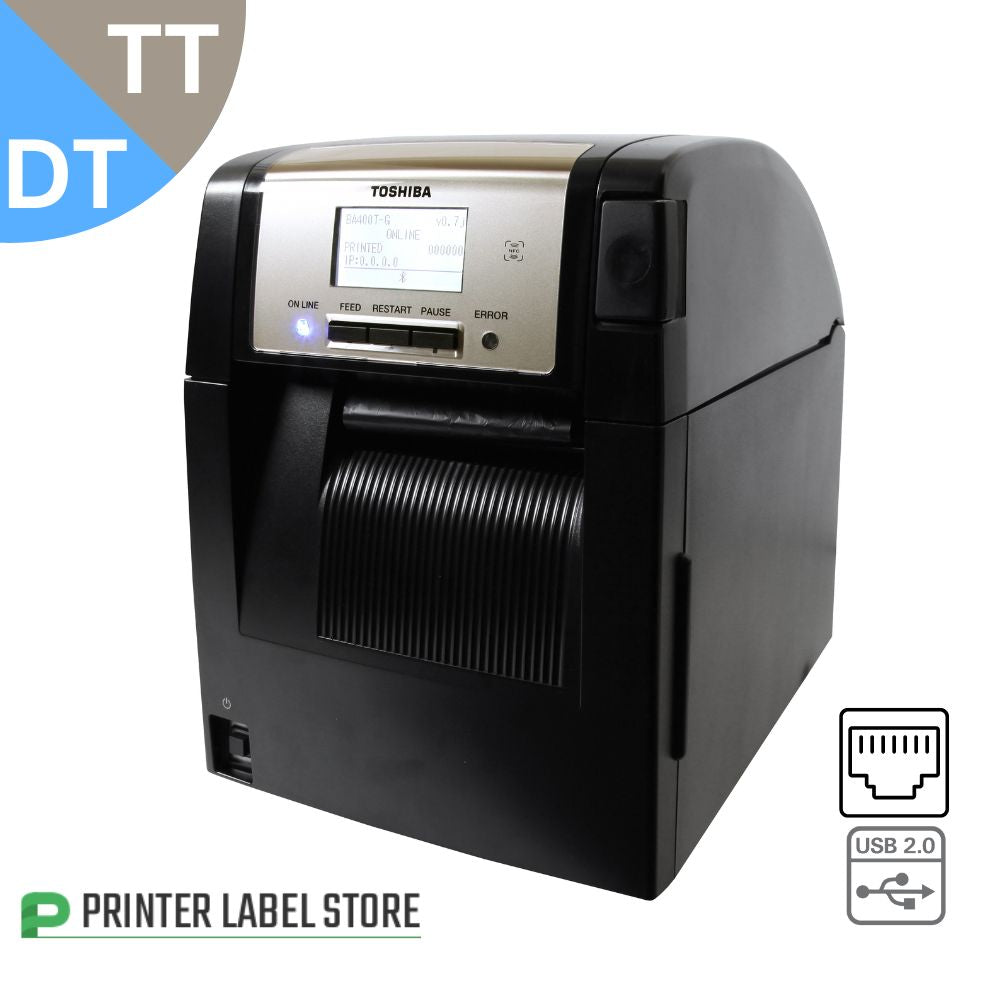

Toshiba TEC BA420T Thermal Transfer & Direct Thermal Label Printer - Flat Head - Plastic Case

The Toshiba BA420T is the first in the next generation of products launched with an entirely new software platform.

• Compact clamshell design with drop-in media loading suitable for versatile applications.
• Extensible OS architecture to keep pace with the latest technology standards.
• Increased print speed with superior print quality for maximised performance.
• New system platform ensures easy integration into complex IT systems.
• Future-proof thanks to a broad set of features and options.
• SOTI Connect certified for IoT device management

Toshiba BA420T - Label Printer Specification

Technology: Direct thermal / Thermal Transfer
Print Head: Flat head
Print Width: GS12: Max. 104 mm (4.09 inches), TS12: Max. 105.7 mm (4.16 inches)
Print Length: 1,498mm
Backing paper width:  25mm to 114mm
Print Resolution: 203 dpi or 300 dpi (8 dot or 12 Dot)
Print Speed: Up to 8 ips (203.2 mm/sec)
Memory capacity: 128 MB (FROM), 128 MB (SRAM)
Barcodes: UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode, GS1 DataBar
2D Codes: Data Matrix, PDF 417, MaxiCode, QR Code, Micro PDF 417, CP Code, Aztec, GS1 Data Matrix, Micro QR Code
Fonts: Bitmap font, outline font, price font, TTF, OTF, writable characters
Interface: USB 2.0 HS, Ethernet 10/100 Base T (IPv4 & IPv6), Bluetooth V2.1 EDR with MFi certified, NFC (for Bluetooth pairing)
Options: Cutter, Peel-off module, Serial interface board, Parallel interface, WLAN module
UHF RFID, expansion I/O board, RTC (real-time clock), fanfold paper guide
Emulation: ZPL II, SBPL
Language Support:  TPCL, Basic Command Interpreter (BCI)

Thermal Transfer Ribbon

Ribbon width: 60 to 110 mm
Ribbon core size:  25.4mm (1 inch)
Maximum ribbon length: 450 m
Ribbon core width: Fixed 118 mm

Media

Alignment: Centred
Media width:  Direct thermal: 22 to 118mm, Thermal transfer: 22 to 114mm
Media thickness: Direct thermal: 0.08 to 0.17mm, Thermal transfer: 0.1 to 0.17mm
Inner core diameter: 38mm, 40mm, 76.2mm
Outer roll diameter: 152.4mm (6 inch)
Media types: Vellum paper and labels, matt coated paper, glossy coated paper, synthetic film, PET film, polyimide
Media formats: Roll, fanfold
