Toshiba TEC BV420T Thermal Transfer & Direct Thermal Label Printer - Desktop

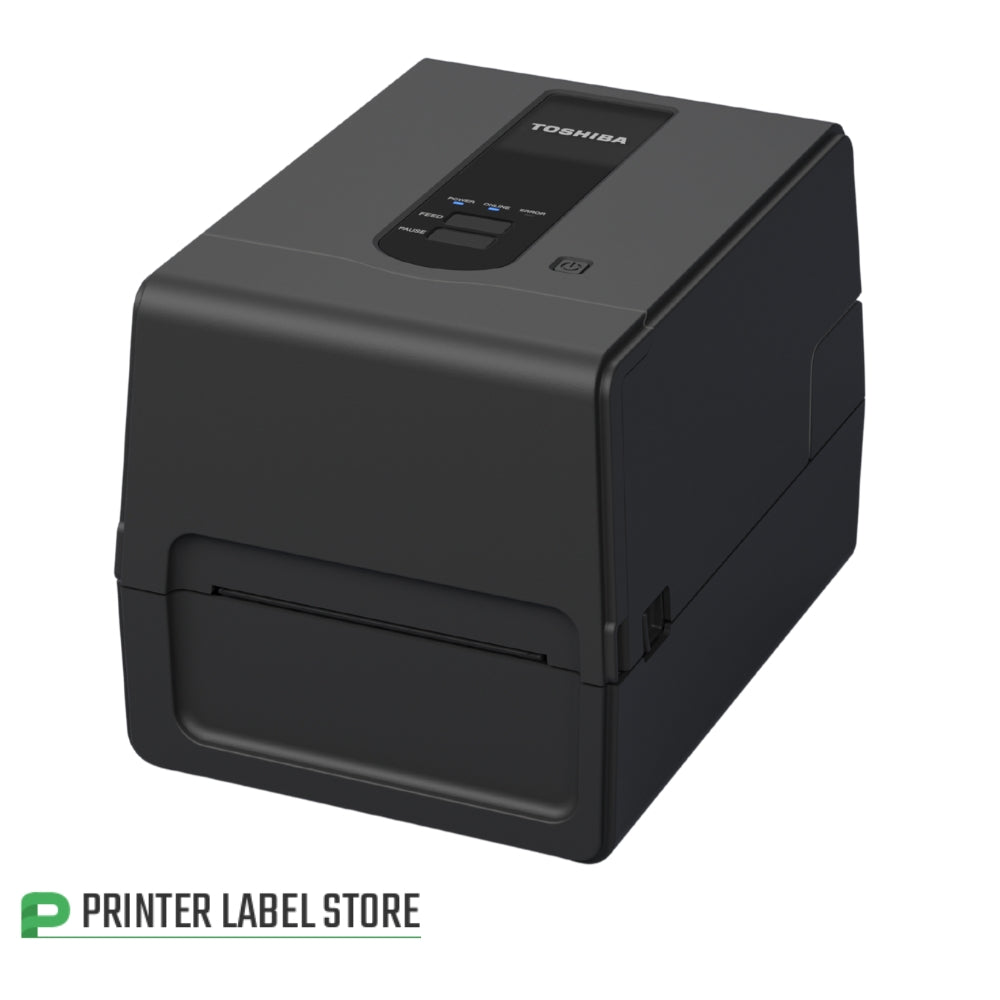

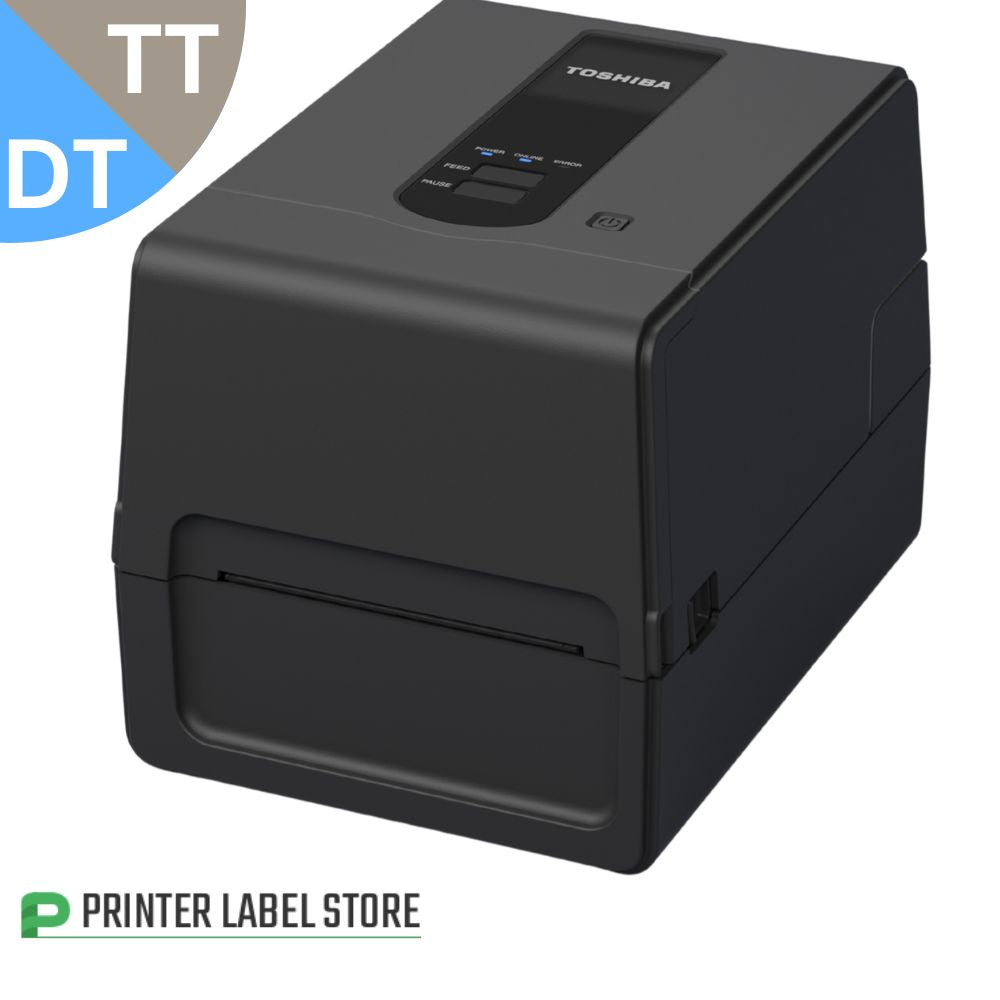

Toshiba BV420T Thermal Transfer & Direct Thermal Label Printer

Ultimate compactness was a core design criteria that led to the creation of the Toshiba BV420T desktop printer range, suitable for versatile applications. With their compact footprint and sleek cases, these printers are ideal for retail shops, offices, or any workplace where space is at a premium.

Speed & efficiency

A series of features ensures your desktop printer is ready to print labels and receipts quickly and efficiently with the touch of a button. The BV410T’s productivity is maximised by market-leading print speeds of up to 7 inches per second and an advanced CPU that processes your data even more quickly. The printer is ready almost instantly at power-on thanks to the rapid boot time.

Delivering reliability to meet future challenges

Designed to withstand the most demanding retail environments, the renowned reliability of the BV420T printers ensures minimal downtime, day after day. With optional built-in AC adapters, the Toshiba desktop printers are the perfect fit, providing a safe workplace.

Key highlights

• Market-leading throughput with up to 7 ips (inches per second)
• Compact & sleek design with a small footprint
• Designed, developed & built by Toshiba
• Intuitive & clear user experience
• Vast print languages & emulations - ZPL II, DPL, SBPL
• Huge performance & functionality at a truly low total cost of ownership

Toshiba BV420T - Label Printer Specification

Technology: Direct thermal/ Thermal Transfer
Print Head: Flat Head
Print Width: 22.4 to 108 mm
Print Length: 6 to 997.9 mm
Backing paper width: 25.4 mm to 118 mm
Print Resolution: 203 dpi or 300 dpi (8 dot or 12 Dot)
Print Speed: up to 177.8 mm/sec (7 ips) - GS02 7 ips (177.8 mm/s) / TS02 5 ips (127 mm/s)
Memory capacity: 128MB SDRAM, 128MB Flash ROM
Barcodes: UPC-A, UPC-E, EAN8/13, UPC-A add on 2&5, UPC-E add 2&5, EAN-8/13 add on 2&5, Code39, Code93, Code128, EAN128, NW7, MSI, Industrial 2 of 5, ITF, POSTNET, RM4SCC, KIX-code, GS1 Databar, USPS Intelligent mail barcode, Codes 2D Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Micro QR, GS1 Data Matrix, Aztec Code
Interface: USB 2.0, USB Host, Ethernet 10/100
Options: Full cutter module, partial cutter module, peel-off module, WLAN 802.11a/b/g/n
Bluetooth V5.2 BR/EDI, External 203mm OD media stand, power cable tray
Emulation: ZPL II, SPBL, DPL, IPL, EPL2
Language Support: TPCL, Basic Command Interpreter (BCI)
IoT device management: SOTI Connect

Thermal Transfer Ribbon

Ribbon width: 40 to 110 mm
Ribbon core size: 25.4 mm (1”), 12.7 mm (0.5”)
Maximum ribbon length: 300m
Maximum ribbon diameter: 65mm

Weight: GS02/TS02 2.9 kg
Dimensions: (W x D x H) GS02/TS02 200 x 267 x 198.3 mm
