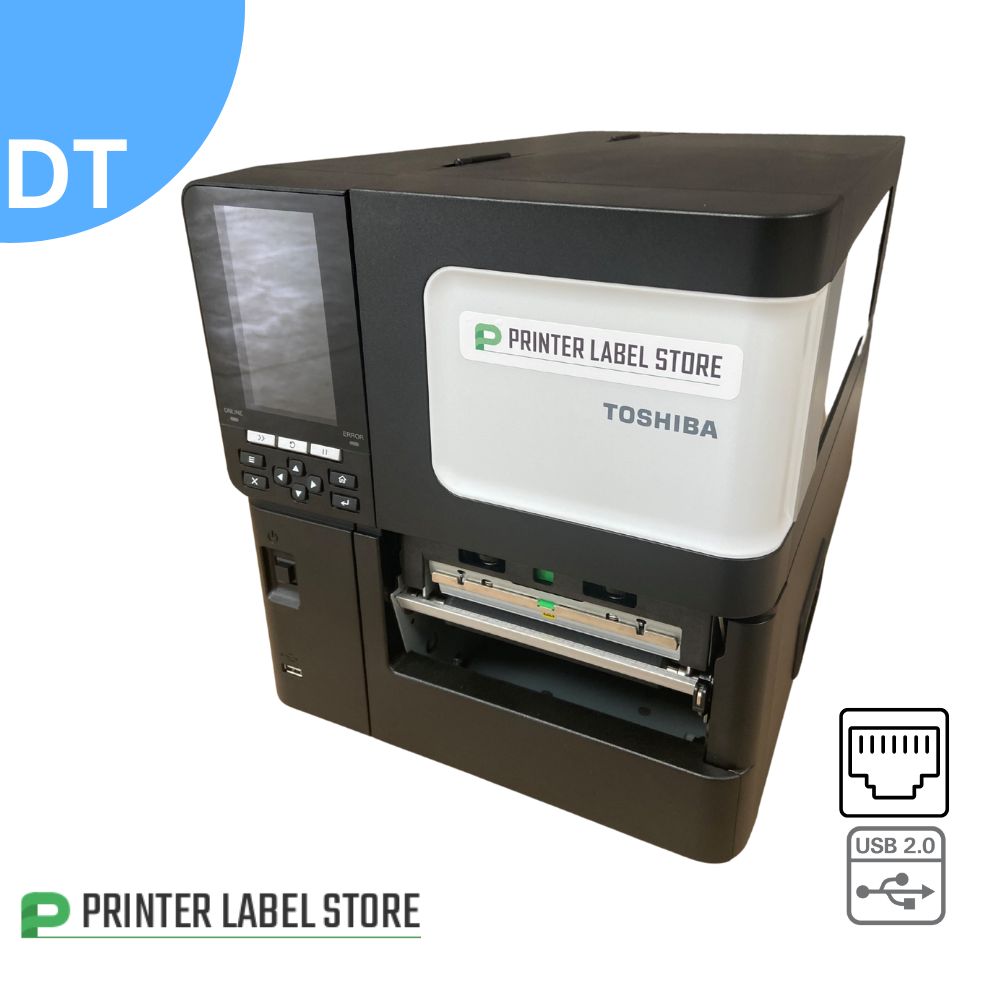

Toshiba TEC BX420D Direct Thermal Label Printer

Toshiba BX420D direct thermal industrial label printer, 4-inch, 203 dpi, USB 2.0, Ethernet, and an intuitive colour LCD display.

The Toshiba BX420D 4-inch label printer offers direct thermal printing. An intuitive colour LCD screen enhances ease of use.  As standard, the BX features  USB and LAN interfaces.

Toshiba’s A-BRID OS offers cloud connectivity with seamless integration, making it ideal for businesses that require flexibility and customised solutions. Engineered for modern efficiency, this printer is designed to meet the evolving needs of professional label printing, making it a dependable choice for organisations that prioritise productivity and quality.

Built for performance, designed for efficiency

The Toshiba TEC BX series builds upon the robustness of its predecessor and introduces innovations that make industrial labelling more innovative and efficient than ever before. Reliability is key, and that’s why these printers are designed to handle high-volume, continuous operations with minimal downtime or operator interventions. Designed for long-term use with reduced maintenance requirements, along with cloud connectivity for remote device management, the Toshiba BX range stays ahead with unmatched productivity without compromising on quality.

Seamless integration & effortless operation

Toshiba understands that businesses require labelling solutions that integrate easily with existing infrastructure. The Toshiba BX series offers multiple connectivity options, including USB, LAN and optional Wi-Fi, along with native PDF printing and auto-emulation to support different printer languages.

Key highlights

• Smart cloud connectivity: The new A-BRID platform enables cloud-based device management, allowing businesses to monitor and control the entire printer fleet
  from anywhere
• Unmatched durability & cost control: Equipped with long-life print heads and optional enhanced ribbon-saving technology, ensuring a low total cost of ownership (TCO).
• Superior user experience: New features like the integrated label near-end detection, the QR code-based help function and a full colour display simplify daily
  operation.
• Versatile application range: Supports a broad spectrum of labelling needs, from logistics, retail and warehouse operations..


Toshiba BX420D - Label Printer Specification

Technology: Direct thermal
Print Head: Flat Head
Print Width: 22 to 111 mm
Print Length: Batch 6 to 1,496mm, Cut 17 to 1,492mm, Peel off 15 to 1,496mm
Backing paper width: 25mm to 114mm
Print Resolution: 203 dpi (8 dot)
Print Speed: up to 305 mm/second (12 ips)
Memory capacity: 1 GB RAM, 8 GB ROM
Barcodes: EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW7, CODE 39, Code 93, ITF, MSI, Code 128, EAN 128,  Industrial 2 of 5, POSTNET, RM4SCC, KIX-code, GS1 DataBar, USPS  Intelligent mail, Customer Barcode
2D Codes: Data Matrix, PDF417, MaxiCode, QR Code, Micro QR Code, Micro PDF417,
CP Code, AZTEC Code, GS1 QR Code, GS1 Data Matrix
Fonts: Bitmap font, Outline font, Price font, Optional TTF, OTF, Writable characters
Interface: USB 2.0 HS (USB host/HID support), LAN 10/100/1000 BaseT
Options: Disc cutter, Peel-off module, External media guide, RS232, Wireless LAN, EX I/O, Real-time clock, Cover damper
Emulation: Auto-detection of TPCL, ZPL II, DPL, SBPL, IPL(2), PDF
Language Support:  TPCL

Media  Direct Thermal

Alignment: Centred (with automatic width detection)
Backing paper width: 25mm to 114mm
Label thickness: 0.13–0.17mm
Inner core diameter: 76.2mm (3")
Outer roll diameter: max. 200mm
Media formats: Roll, fanfold
Near-end detection: Adjustable, e.g. 10% remaining
