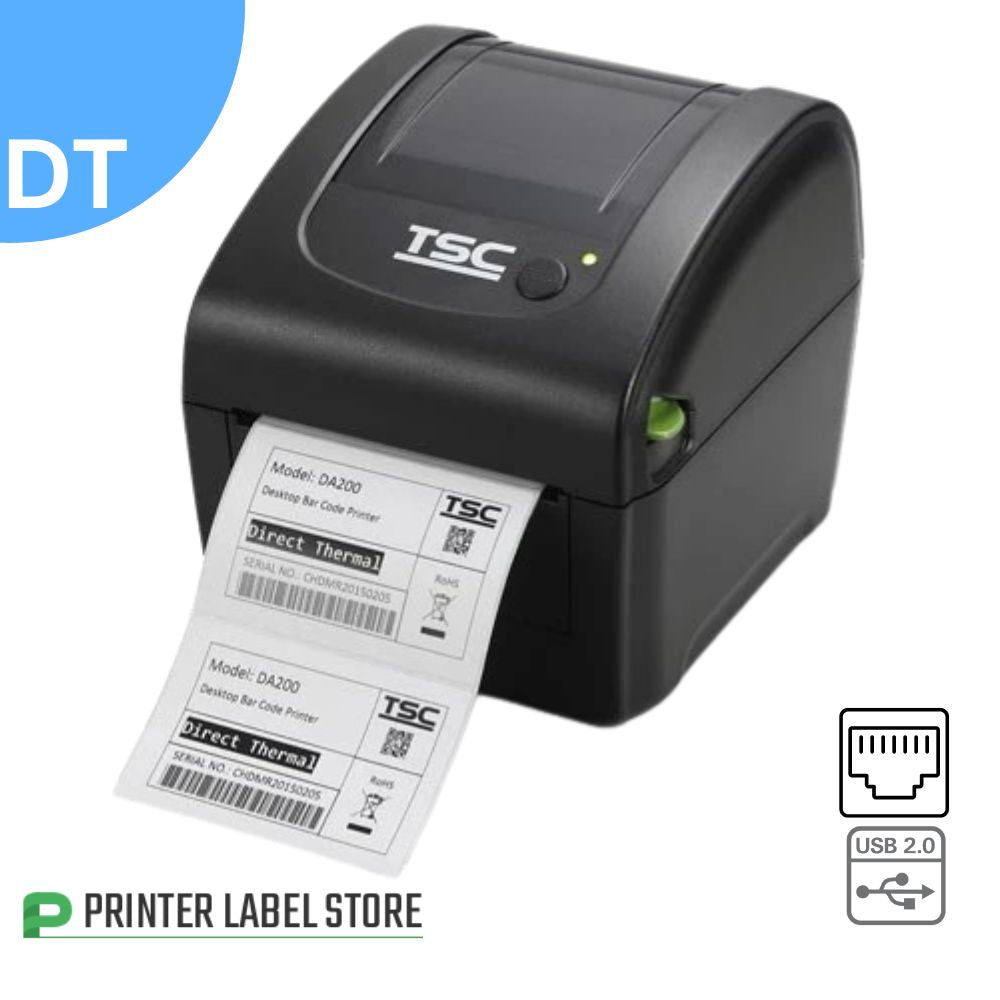

TSC DA220 Direct Thermal Label Printer - Ethernet + RTC + USB Host + RS-232

TSC DA220 Desktop direct thermal label printer, 203 dpi, 6 ips, USB 2.0, Ethernet, Real Time Clock, USB Host, RS-232.

The TSC DA220 desktop label printer is a great, reliable, and affordable printer.  It offers an impressive print speed of 6" (152.4mm) per second, with a durable dual-wall construction.  And, it is ENERGY STAR® qualified to reduce your operational expenses.

Get up and running and printing quickly

The TSC DA220 is simple to install, and Windows labelling software is provided.   Easily replace legacy printers using TSPL-EZ firmware emulates Eltron® and Zebra® languages out of the box.

Applications

• Small Parcel Shipping
• Mail Room Address and Routing Labels
• Shipping & Receiving
• Entertainment and Transportation Ticketing
• Retail Point-of-Sale
• File-Folder Labelling

TSC DA220 - Label Printer Specification

Technology: Direct thermal
Maximum Print Width: 108 mm (4.25”)
Media Width:  19 to 114 mm (0.7“ to 4.5“)
Maximum Label Length: 10 to 2,286 mm (0.39“ to 90“)
Media Roll Diameter: 127 mm (5“) OD - 25.4 & 38 mm (1” & 1.5”)
Print Resolution: 203 dpi - 8 dot
Print Speed: 152.4 mm (6”) per second
Memory capacity: 128 MB Flash memory - 64 MB DRAM
1D Barcodes: Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
2D Barcodes: PDF-417, Maxicode, DataMatrix, QR code, Aztec, MicroPDF417
Interface: Ethernet + RTC + USB Host + RS-232

Note: Includes UK power cable
